How To Epoxy A Garage Floor: A Complete Practical Guide.
Garage concrete floors are durable but they stain, crack, collect dust and are hard to clean. Epoxy coating turns a rough and ugly floor into a hard wearing, easy to clean, attractive surface.
This guide will show you what epoxy is, how you prepare your floor, how to apply the coating, what costs to expect, what problems to avoid, and how to keep your floor looking good for years. If you want to do it yourself or just be smart when hiring someone this is for you.

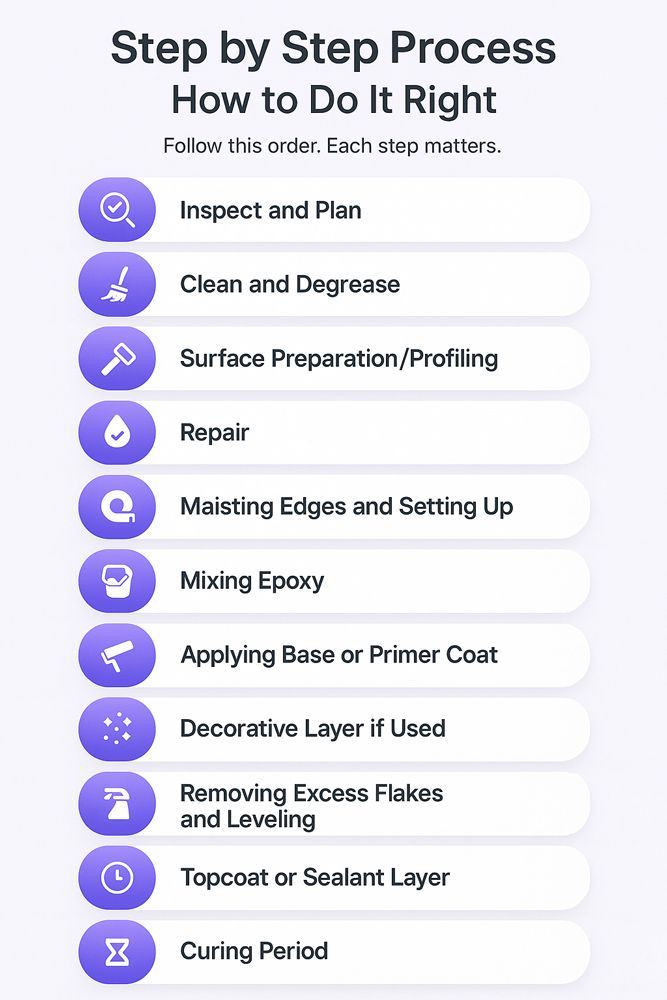

Step by Step Process: How to Do It Right
Follow this order. Each step matters.
1. Inspect and Plan
- Check the floor for large cracks, spalling, existing coatings, slope, drainage, moisture.
- Decide finish type (plain, flakes, metallic) and whether slip resistance is needed.
2. Clean and Degrease
- Remove everything from floor. Sweep, vacuum, power wash if possible.
- Use degreaser to remove oil, grease, stains. Let area dry completely.
3. Surface Preparation / Profiling
- Ideal tool: mechanical grinder or shot blaster to rough up smooth concrete so epoxy can adhere.
- Acid etching possible but grinding gives better profile. Clean up all dust after grinding.
4. Repair
- Fill cracks, chips, uneven areas with repair compounds. Let repairs cure fully before epoxy.
5. Moisture Testing
- Use a moisture meter or conduct relative humidity (RH) test in the slab. If moisture emission is too high use moisture barrier or primer that tolerates moisture.
6. Masking Edges and Setting Up
- Tape walls, protect doors, ensure edges are clean. Organize lighting and ventilation.
7. Mixing Epoxy
- Mix resin and hardener in correct ratio. Stir slowly to avoid bubbles. Some epoxies need induction time (wait after mixing before applying).
8. Applying Base or Primer Coat
- Apply evenly with roller or squeegee depending on product. Back rolling helps distribute epoxy evenly. Ensure sufficient thickness.
9. Decorative Layer if Used
- If using flakes or chips, broadcast them while base coat is still wet. Ensure even coverage and overlap edges.
10. Removing Excess Flakes and Leveling
- After flakes settle but before topcoat apply, scrape or sweep off excess flakes. Vacuum or sweep dust.
11. Topcoat or Sealant Layer
- Apply a durable topcoat. If UV exposure expected use UV-stable topcoat. Add slip resistant additive if needed.
12. Curing Period
- Let epoxy cure fully before walking or placing heavy items. Typical cure times vary by product but may take 24 to 72 hours or more. For full strength may take several days.
13. After Care and Maintenance
- Clean spills promptly. Sweep regularly. Clean with pH neutral cleaner. Avoid harsh or abrasive cleaners.
- Inspect periodically for chips, cracks, delamination. Patch small issues to prevent larger failure.
What Is Epoxy Flooring and How It Works
- Epoxy is a mixture of resin plus hardener. When you mix them they cure into a rigid plastic material that adheres to concrete.
- There are several types of epoxy: water based, solvent based, and 100 percent solids. Water based is easier to use and safer but thinner and less durable. Solvent based is stronger but more fumes. 100 percent solids give the thickest, toughest finish.

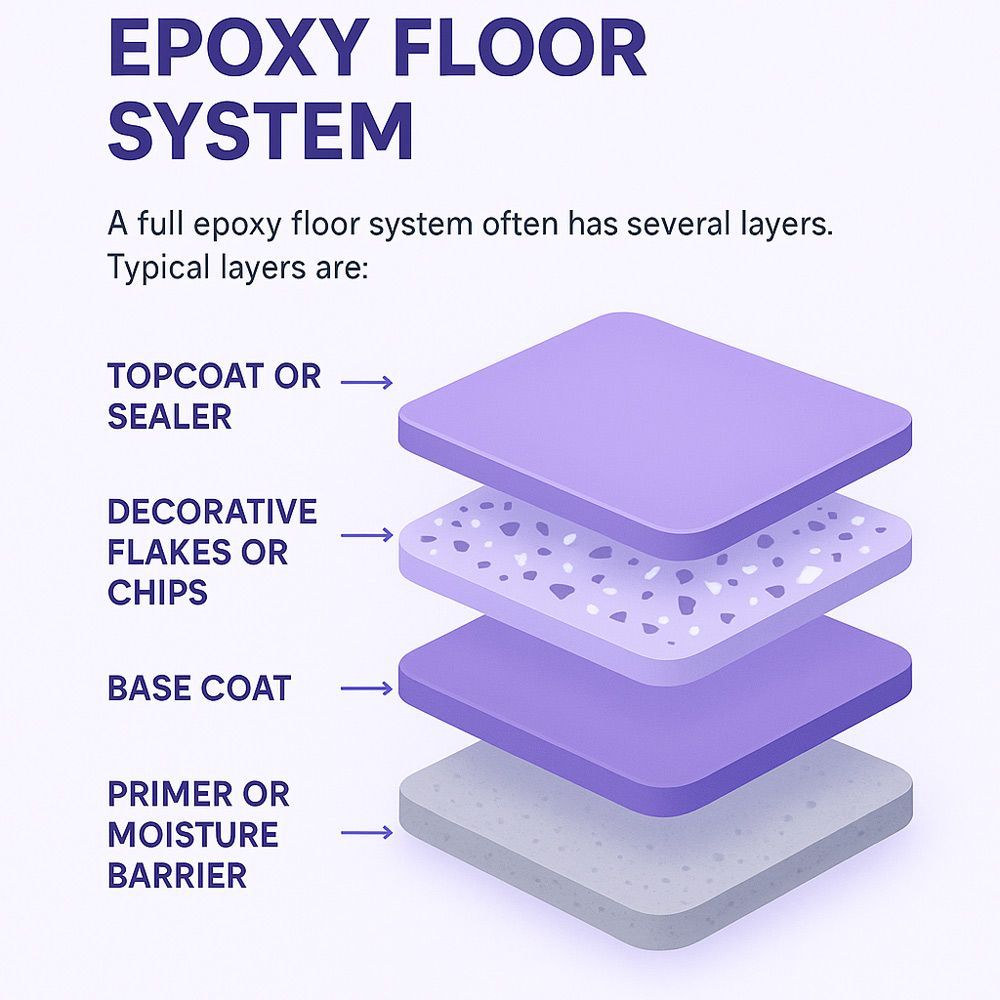

- A full epoxy floor system often has several layers. Typical layers are: primer or moisture barrier, base coat, decorative flakes or chips if you want, then a topcoat or sealer. Additives like slip resistance or UV stabilizer may be included.
Benefits of Epoxy Garage Floors
- Very durable against abrasion, oil stains, chemicals, and heavy wear. Epoxy floors last much longer than untreated concrete.
- Easier to clean. Dirt, oil, fluid spills wipe off more easily than bare concrete. Less dust.
- Aesthetic improvement. You can choose color, flakes, metallic finishes, textures. You can make the floor look neat and bright.
- Low maintenance. Once done properly less frequent repairs are needed. Over time savings in cleaning, staining, repair offset the upfront cost.
Challenges and Risks
- Moisture problems. If concrete has moisture rising from below or stays damp after cleaning or etching then epoxy may peel, bubble or fail. Do moisture testing.
- Temperature and humidity during installation. If too cold or too hot or humidity too high epoxies may cure incorrectly, bond poorly or discolor.
- Improper surface preparation. Skipping or skimping cleaning, degreasing, grinding or allowing oil or contaminants on floor reduce adhesion and durability.
- Cost. Nice finishes, good epoxy types, good prep, professional work all increase cost. Doing it poorly may mean repeating soon.
- Slippery surface when wet or oily unless you add texture or slip resistance.
Cost Expectations and What Drives Price
- If you hire professionals expect cost in the range US$3 to US$12 per square foot depending on epoxy type, finish, degree of surface repair, and whether decorative effects are used.
- For a standard 2 car garage (about 400-500 square feet) professional installation might cost between US$1,500 to US$5,000 depending on finish and condition.
- If doing it yourself you save on labor but you still need to buy good materials, tools, safety gear. DIY kits cost may be low but mistakes cost extra.

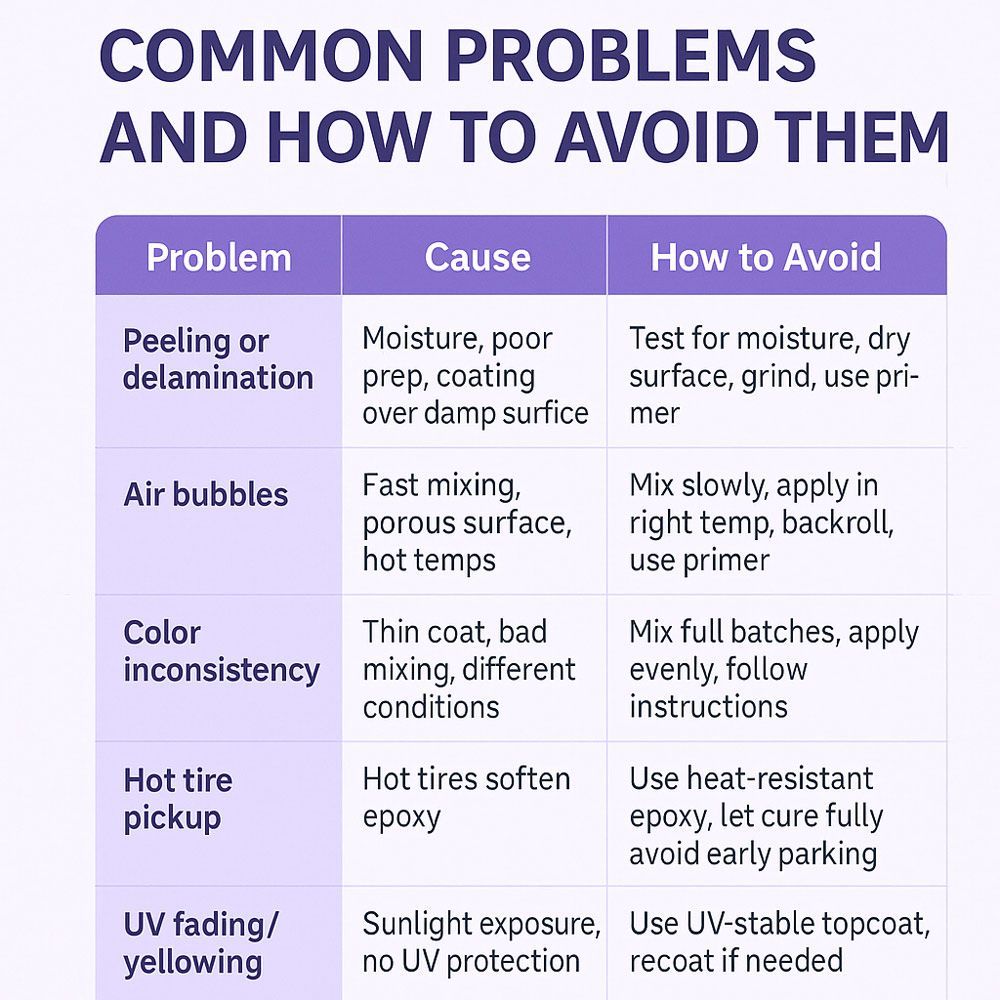

Common Problems and How to Avoid Them
| Problem | Cause | How to Avoid |
|---|---|---|
| Peeling or delamination | Moisture in concrete, poor prep, applying epoxy too soon over damp surface | Do moisture testing, allow surface to dry, use proper primer, ensure good profile via grinding |
| Air bubbles in the coating | Mixing too fast, trapping air, applying over porous surface, hot temperature or direct sun | Mix gently, avoid vortexing, apply in correct temperature, use primer, backroll, ensure surface is clean |
| Color inconsistency or splotches | Inconsistent mixing, applying too thin, different batches under different conditions | Mix full batches, maintain same conditions, follow manufacturer instructions, avoid stretching epoxy too far |
| Hot tire pickup | Vehicle tires hot causing epoxy to soften and lift underneath | Use epoxy with high heat resistance, allow full cure before parking, avoid parking immediately after finish |
| UV fading or yellowing | Exposure to sunlight, UV rays degrading epoxy surface if not UV stabilized | Use UV stabilized topcoats, avoid direct sunlight if possible, maintain topcoat if it deteriorates |
Frequently Asked Questions
How long before I can park a car on my new epoxy floor?
Wait until the epoxy is fully cured according to product instructions. Many need 24 to 72 hours before light foot traffic. Heavy traffic or parking may need more time.
Will my epoxy yellow if exposed to sunlight?
Without UV protection yes. UV rays will cause discoloration or fading over time. Use topcoats or epoxy systems that include UV inhibitors to reduce that risk.
Can I epoxy over existing epoxy?
Sometimes yes but it depends on the condition of the existing coat, whether it is bonding well, and whether the new epoxy product is compatible. Surface may need to be ground or roughened.
Is epoxy slippery when wet?
Plain epoxy without texture can be slippery when wet or oily. To avoid slips add non slip additives or texture, or broadcast grit or flakes during application.
What temperature and humidity is safe during application?
Follow manufacturer guidelines. Usually ambient temperatures and concrete surface temperatures between certain ranges are needed. Humidity should be moderate. Too high humidity or cold temperature can slow curing or cause defects.
A Floor That Lasts for Years
If you do the work properly epoxy garage floors give you a floor that is much easier to clean, more attractive, more durable, resistant to stains, chemicals and heavy wear. The most important things are good surface preparation, managing moisture, mixing epoxy correctly, applying a full system with layers, waiting long enough for curing, and maintaining the floor. If you follow those steps your epoxy floor will look great and last many years.
